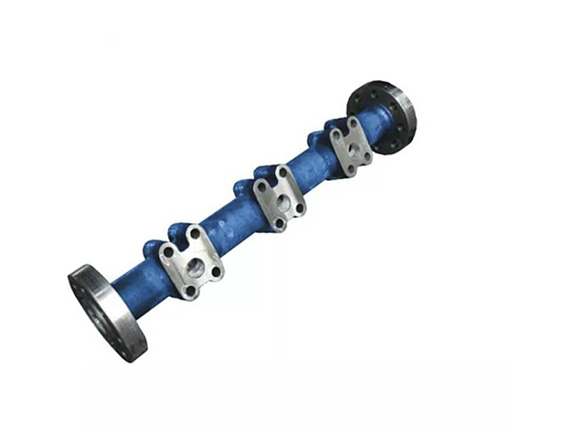

1.Discharge manifold
Mud pump pressure medium discharge line is output. 35CrMo high quality casting blank processing. Three holes respectively, and the middle of it is connected to three hydraulic cylinders, one end and the end portion connected to the filter assembly, the output end and the other end through the four-way connection.
Discharge piping materials: American Cast Iron A487-9D, resistant to corrosion and a wide temperature range and high strength characteristics.
Modulation processing: HB195-235.
Finished hydrostatic test, the test pressure is 52MPa, no leakage and other defects.

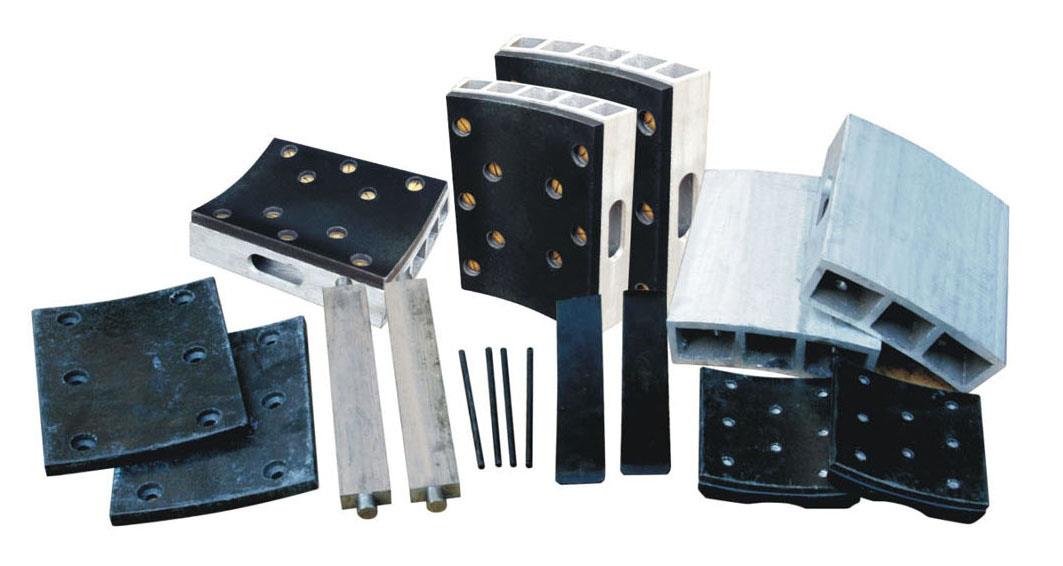

2.Brake Shoe Assy for Clutch
Ordinary Pneumatic Clutch. The friction plate is fixed directly on the pneumatic tire, and the torque is transmitted by the pneumatic tire. With a simple structure, manufacturing and installation of low technical requirements.
As a kind of friction clutch that uses compressed air as manipulating power source, pneumatic-tyred clutch is widely used in such equipment as oil drilling rig and workover rig, and is also an important part of the drive systems of oil drilling rig and workover rig.
The characteristics of pneumatic-tyred clutch are as follows: large transmitted torque, steady joint, easy to install, vibration absorption, compensation to an extent for the relative radial offset and relative angular offset of drive and driven shafts, small inertia of the driven parts, long service life, compact structure and good sealing.
Furthermore, due to great resistance to deformation of pneumatic tyres, the service life of such tyres will be shortened when the operating temperature is over 60°C, and they tend to become fragile when the temperature is lower than -20°C.
The joint element of a pneumatic clutch is mainly made up of friction disk and friction block and so on.
Pneumatic-tyred clutch can be divided into common type and ventilation type in terms of structure.
Types of pneumatic clutch
LT300/100, LT500/125T, LT600/125T, LT700/135CBC, LT800/135, LT700/200, LT500/200T, LT500/250T, LT600/250T, LT700/250T, LT800/250T, LT900/250T, LT1070/200T, LT1170/250T, LT965/305T, LT1168/305T, LT700/135DY.

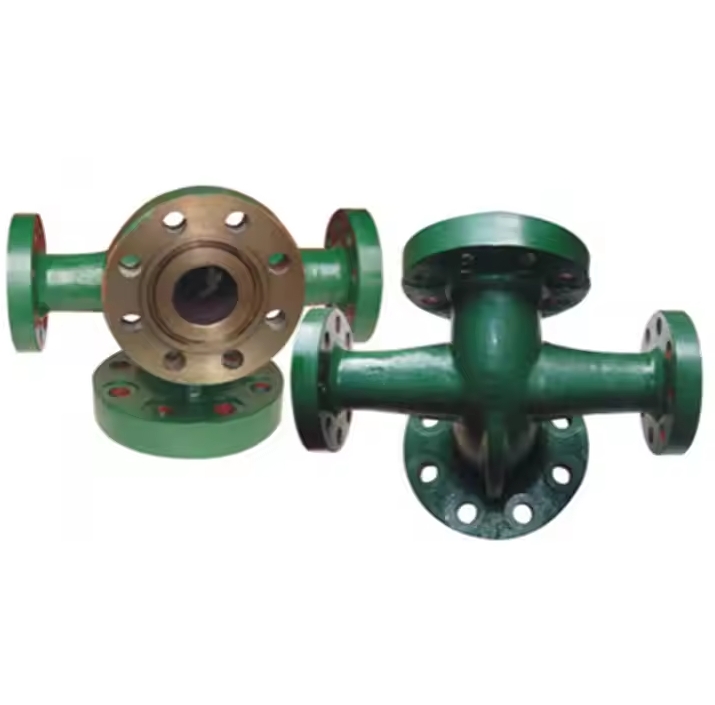

3.Discharge elbow for mud pump
The discharge elbow made of alloy steel is the accessory of the mud pump which is the drilling equipment for the oilfield service.
Application Industry: Oil well drilling
Usage: For mud pump
Standard: API 7K
Material: Alloy Steel
Products condition: New
Working pressure: High pressure
Mud pump model: F 1600
Type: Mud pump discharge elbow
Process type: Forging
Hot Tags: discharge elbow for mud pump, China, manufacturers, suppliers, factory, wholesale, customized, bulk, low price, in stock, Shock resistant Pressure Gauge, Filter for Discharge Manifold, Gauze Filter Cover, Transmission Spare Parts, Shock Resistance Oil Pressure Gauge, The Filter Assembly
4.Filter For Discharge Manifold
Filter installed in the exhaust filter assembly, the filter mud plays a role.
Material Q235A steel. Surface blueing.
