Annular BOP Packing Elements Price:¥ Id:Spherical Packing Element; Tapered Packing Element-Type GX/GK/MSP Place of origin:China

Main products: high-end rubber seals for oil and gas drilling and production equipment, a total of more than 20 series of more than 3,000 varieties, to achieve high-pressure and complex well rubber core localization.

颜色
  • 红色
Online inquiry
Detailed content Specification parameter Product packaging

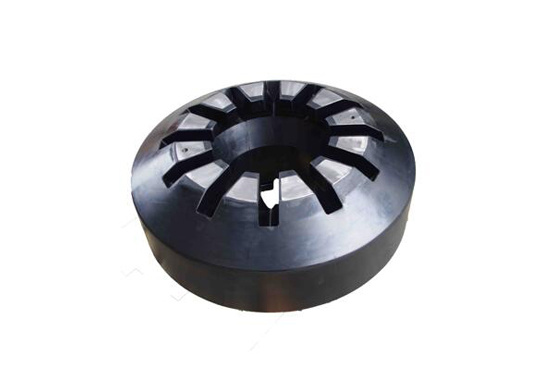

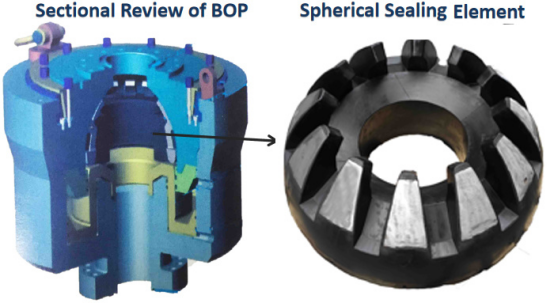

1.Spherical Packing Element





The product can match and interchange with the equipments of API 16A most of API 16A the domestic BOP manufactories, (such as Shanghai Shenkai, Huabei Rongsheng, Chuanyou Jingkong, Baoji Oil, Jiangsu Xinde, Jiangsu Sanyi etc.); After the application in the oil fields over the years, it has been proved that all the technical requirements and performance of API 16A our products can reach the standards of API 16A and be interchangeable with the products of API 16A Shaffer and Cameron.



It can be customized according to customers' specific requirements of API 16A temperature, pressure and environment conditions.



Temperature Range: Normal

Conditions: -18℃-121℃

Special Case: -45℃-180℃

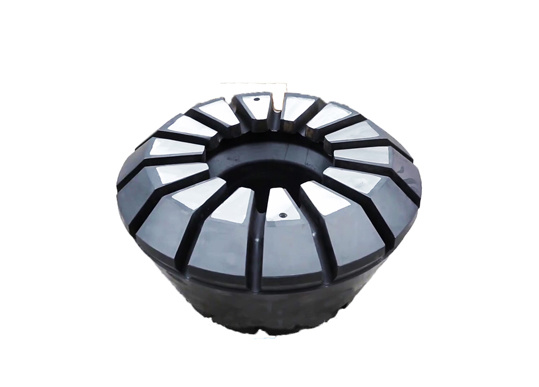

2.Tapered Packing Element-Type GX


The product can match and interchange with the equipments of most of the domestic BOP manufactories, (such as Shanghai Shenkai, Huabei Rongsheng, Chuanyou Jingkong, Baoji Oil, Jiangsu Xinde, Jiangsu Sanyi etc.); After the application in the oil fields over the years, it has been proved that all the technical requirements and performance of our products can reach the standards of and be interchangeable with the products of Hydril.


It can be customized according to customers' specific requirements of temperature, pressure and environment conditions.


Temperature Range: Normal

Conditions: -18℃-121℃

Special Case: -45℃-180℃




3. Tapered Packing Element -Type GK




The product can match and interchange with the equipments of most of the domestic BOP manufactories, (such as Shanghai Shenkai, Huabei Rongsheng, Chuanyou Jingkong, Baoji Oil, Jiangsu Xinde, Jiangsu Sanyi etc.); After the application in the oil fields over the years, it has been proved that all the technical requirements and performance of our products can reach the standards of and be interchangeable with the products of Hydril.



It can be customized according to customers' specific requirements of temperature, pressure and environment conditions.



Temperature Range: Normal

Conditions: -18℃-121℃

Special Case: -45℃-180℃

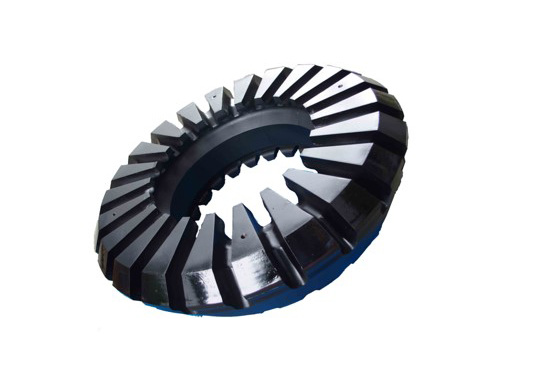

4. Tapered Packing Element-Type MSP



The product can match and interchange with the equipments of most of the domestic BOP manufactories, (such as Shanghai Shenkai, Huabei Rongsheng, Chuanyou Jingkong, Baoji Oil, Jiangsu Xinde, Jiangsu Sanyi etc.); After the application in the oil fields over the years, it has been proved that all the technical requirements and performance of our products can reach the standards of and be interchangeable with the products of Hydril.



It can be customized according to customers' specific requirements of temperature, pressure and environment conditions.



Temperature Range: Normal

Conditions: -18℃-121℃

Special Case: -45℃-180℃



1.Spherical Packing Element

Dimensions:

BOP SizeWork PressureBOP Type
Matched BOP Manufacturer
ForeignDomestic
7 1/16″5,000 psibolted modelsShafferAll
9″5,000 psibolted modelsShaffer
11″3,000 psibolted modelsShaffer

5,000 psibolted modelsShaffer

10,000 psibolted modelsShaffer
13 5/8″5,000 psibolted modelsShaffer

10,000 psiwedge cover modersShaffer
18 3/4″5,000 psibolted modelsShaffer

10,000 psibolted modelsShaffer
20 3/4″3,000 psibolted modelsShaffer

Seal Kit:

BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
7 1/16″10,000 psi
ShafferAll
9″5,000 psi
Shaffer
11″3,000 psi

11″5,000 psi/10,000 psi
Shaffer
13 5/8″5,000 psi
Shaffer
13 5/8″10,000 psi
Shaffer
18 3/4″5,000 psi

18 3/4″10,000 psi

20 3/4″3,000 psi


2.Tapered Packing Element-Type GX

Dimensions:



BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
9″5,000 psiGKHydrilAll
11″10,000 psiGXHydril
13 5/8″5,000 psiGK/GXHydril
13 5/8″10,000 psiGXHydril
16 3/4″5,000 psiGKHydril
21 1/4″2,000 psiGKHydril
29 1/2″500 psiMSPHydril
18 3/4″10,000 psiGX

Seal Kit:


BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
11″10,000 psi/15,000 psi
HydrilAll
13 5/8″5,000 psiGKHydril
13 5/8″5,000 psiGXHydril
13 5/8″10,000 psi
Hydril
16 3/4″5,000 psi
Hydril
21 1/4″2,000 psi
Hydril
29 1/2″500 psi
Hydril
18 3/4″10,000 psiGX


3. Tapered Packing Element -Type GK

Dimensions:


BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
9″5,000 psiGKHydrilAll
11″10,000 psiGXHydril
13 5/8″5,000 psiGK/GXHydril
13 5/8″10,000 psiGXHydril
16 3/4″5,000 psiGKHydril
21 1/4″2,000 psiGKHydril
29 1/2″500 psiMSPHydril
18 3/4″10,000 psiGX

Seal Kit:


BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
11″10,000 psi/15,000 psi
HydrilAll
13 5/8″5,000 psiGKHydril
13 5/8″5,000 psiGXHydril
13 5/8″10,000 psi
Hydril
16 3/4″5,000 psi
Hydril
21 1/4″2,000 psi
Hydril
29 1/2″500 psi
Hydril
18 3/4″10,000 psiGX


4. Tapered Packing Element-Type MSP

Dimensions:


BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
9″5,000 psiGKHydrilAll
11″10,000 psiGXHydril
13 5/8″5,000 psiGK/GXHydril
13 5/8″10,000 psiGXHydril
16 3/4″5,000 psiGKHydril
21 1/4″2,000 psiGKHydril
29 1/2″500 psiMSPHydril
18 3/4″10,000 psiGX

Seal Kit:


BOP SizeWork PressureBOP TypeMatched BOP Manufacturer
ForeignDomestic
11″10,000 psi/15,000 psi
HydrilAll
13 5/8″5,000 psiGKHydril
13 5/8″5,000 psiGXHydril
13 5/8″10,000 psi
Hydril
16 3/4″5,000 psi
Hydril
21 1/4″2,000 psi
Hydril
29 1/2″500 psi
Hydril
18 3/4″10,000 psiGX


Sea worthy/realway worthy exporting package.
