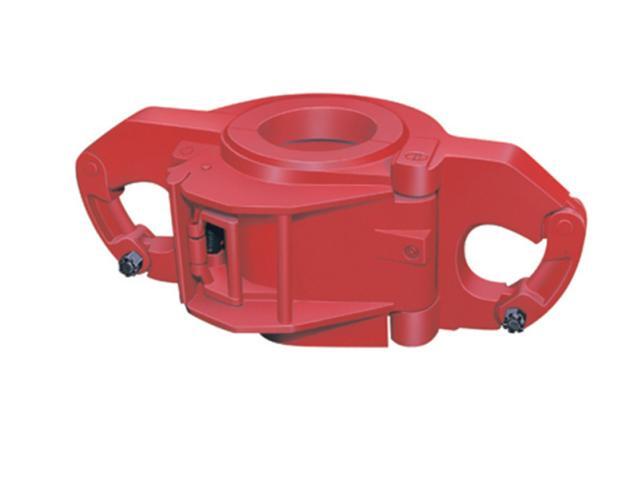

1.Type TA Elevators
Model TA center latch elevators with square shoulder are suitable or handling, drill collar, casing and tubing. The products are designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.

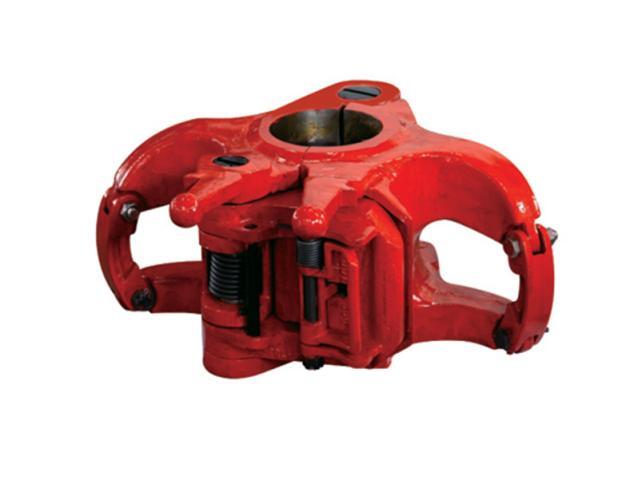

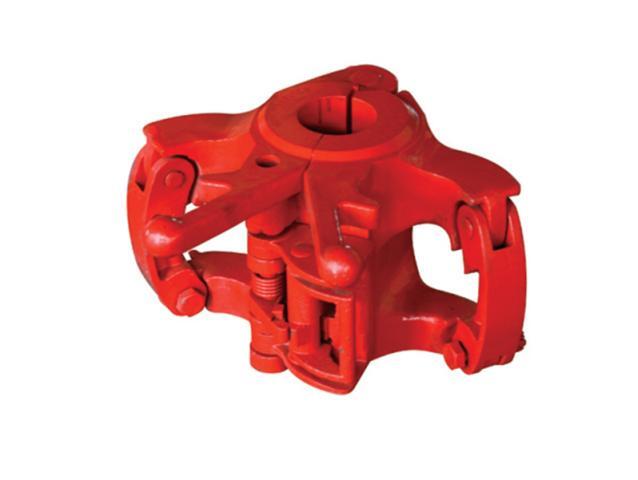

2.Type DD Elevators
Model DD center latch elevators with square shoulder are suitable for handling drill collar, drill pipe, casing and tubing.The load ranges from 150 tons to 350 tons. The size ranges from 2 3/8 to 5 1/2 in The products are designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.

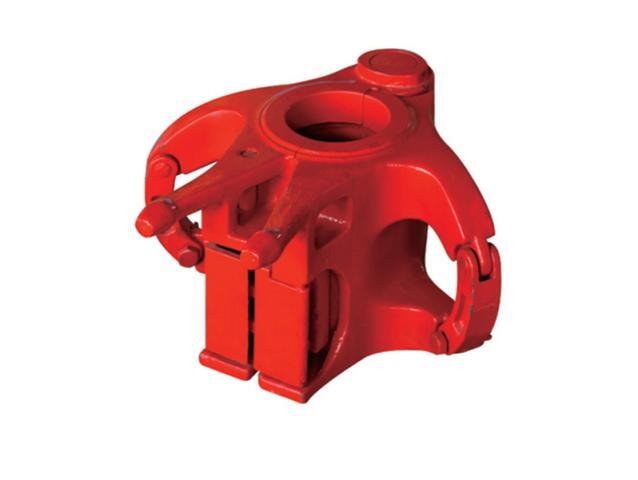

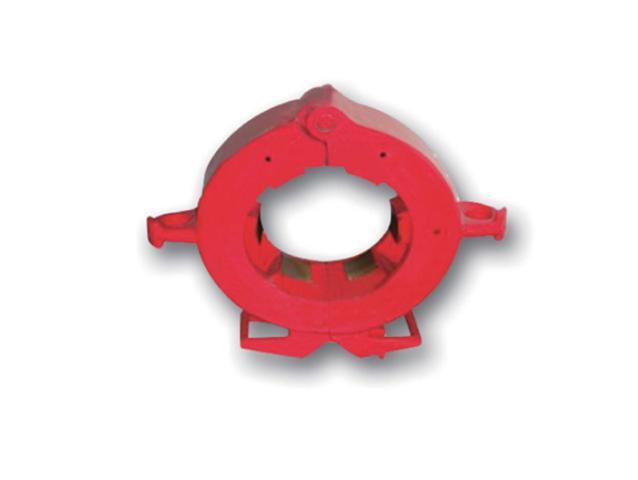

3.Y Series Slips Type Elevators
The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.

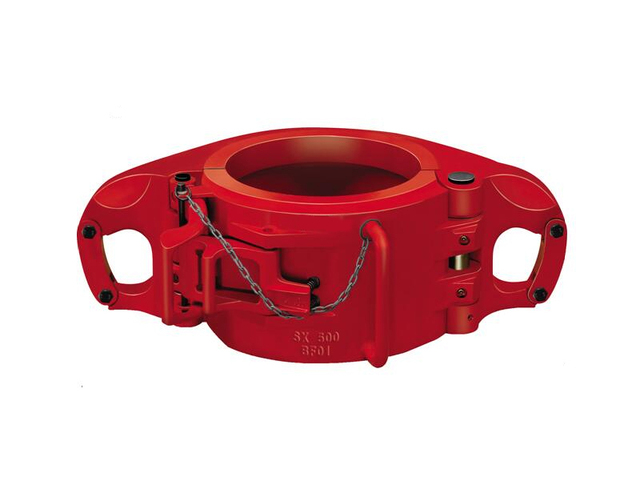

4.Type SLX Elevator
Model SLX side door elevator with square shoulder is suitable for handling tubing, casing, drill pipe and drill collar in oil and natural gas drilling, well construction.
5.Type CD Elevator
CD drill pipe elevators are conventional side door drill pipe elevators for handling 90 degree shoulder drill pipe in oil and gas drilling operation, CD drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated loads range from 150t to 750t, and cover pipe sizes from 2.3/8" to 9.7/8"O.D .
6.Type CDZ Drill Pipe Elevator
CDZ drilling pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.CDZ drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated loads range from 150t (1350kN) to 500t (4500kN, and cover pipe sizes from 2.3/8" to 5.1/2" O.D .
7.Type DDZ Drill Pipe Elevators(18º TYPE ELEVATORS G SERIES)
DDZ series elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 tons. The size ranges are from 2.3/8" to 6.5/8".
8.Type SP Single Joint Elevators
SP series auxiliary elevator is mainly used as a tool in handling single tubing, casing and drill pipes with taper shoulder. The products are designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
