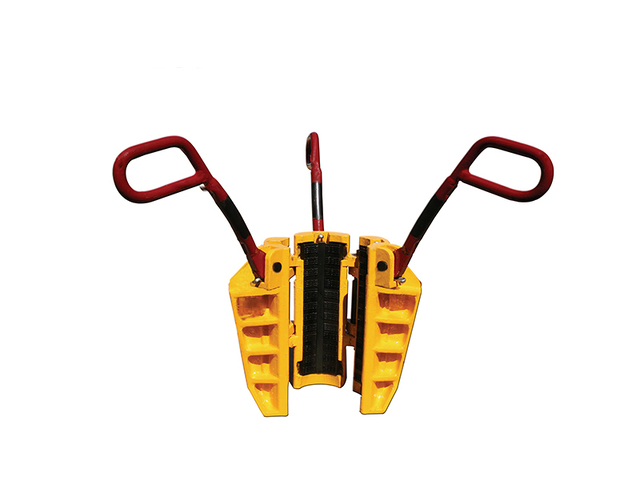

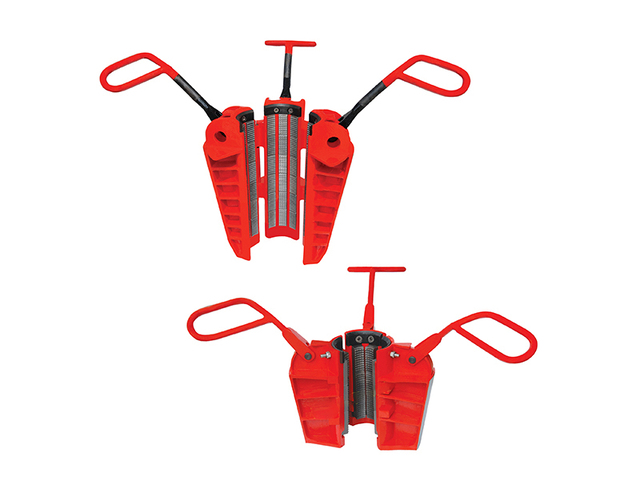

1.Rotary Slips
Rotary slips can accommodate drill pipe from 2 3/8-7in(60.3-177.8mm)O.D. They Are classified as type Ultra-Short(SDS-S),short(SDS),Medium(SDML) and Extra Long(SDXL) according to gripping length.SDS-S slips and SDS slips are designed for shallow drilling,SDML slips are the perfect choice for all medium depth drilling,SDXL slips are designed for deep drilling.

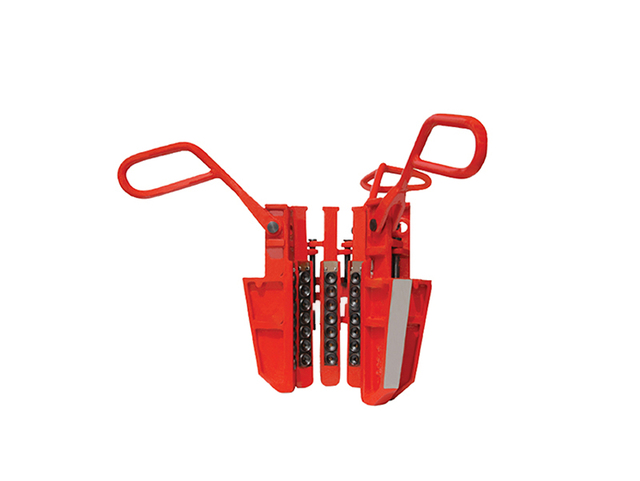

2.Casing Slips
Casing Slips Type CMS can accommodate casings from 4.1/2 to 30in (114.3 to 762mm). They are designed and manufactured according to API Spec 7K.
3.DCS Collar Slips
There are three types of DCS Drill Collar Slips: S, R and L. They can accommodate drill collars from 3in(76.2mm) to 14in(355.6mm) O.D.. The handling sizes can be adjusted by changing the quantity of inserts or slip body. They are designed and manufactured according to API Spec 7K.
4.DU Rotary Slips
There are three types of DU Series Rotary Slips: DU, DUL and SDU. They are with large handling range and light weight. Therefore, these slips have larger contact area on the taper and heat-treated for strength and wear resistance. They are designed and manufactured according to API Spec 7K.

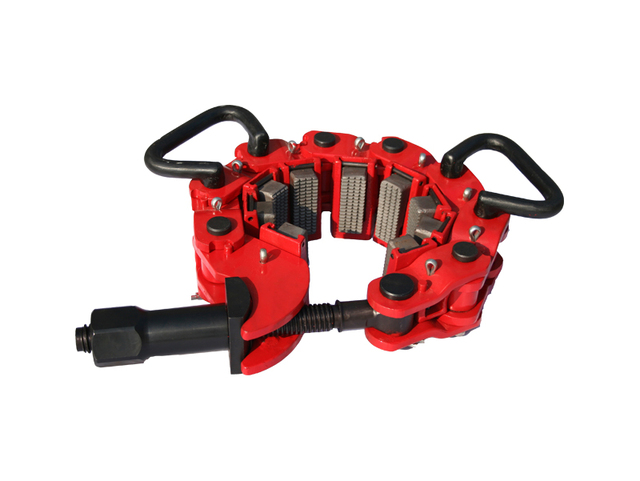

5.Type MP Safety Clamps
Safety Clamps Type MP are necessary tools for handling drill collars, flush joint pipes and small shoulder pipes. They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to API Spec 7K.
6.Type WA-C and WA-T Safety Clamps
Safety Clamps Type C&T are tools for handling flush joint pipes and drill collars.
7.Drill Collar Slip Type WT
Drill Collar Slips Type WT can accommodate drill collars from 4 1/2”(114.3mm) to 9 1/2”(241.3mm)OD.
They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipments.
8.UC-3 Casing Slips
Casing Slips Type UC-3 are multi-segment slips with of 3in/ft on the diameter taper slips(except size 8 5/8”).Every segment of one slip is forced equally while working.Thus the casings could keep a better shape.They should work together with spiders and insert bowls with same taper.The slips are designed and manufactured according to API Spec 7K.
9.Type B Rotary Slips(Woolley Style)
There are three model of type B rotary slips(woolley style):B short,B Long and X Long.
The unique torque transmitting design can directly transfer all the torque to the slips,avoiding the abrasion,prolonging the service life.The product is designed and manufactured according to API Spec 7K requirements.

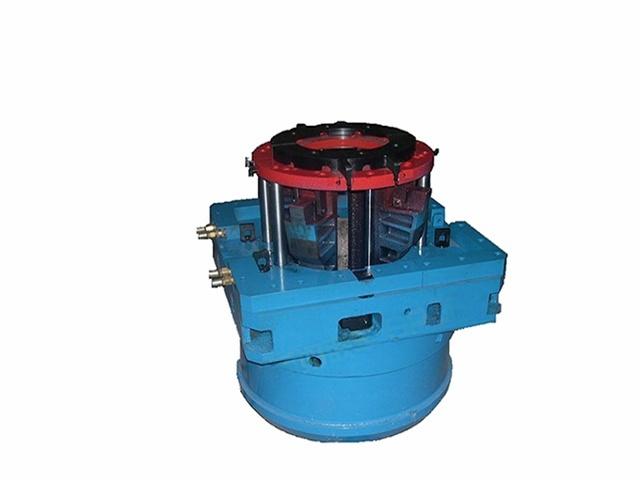

10.PS Pneumatic/HYDRAULIC Slips
PS Series Pneumatic/Hydrulic Slips are tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. They are designed and manufactured according to API Spec 7K.

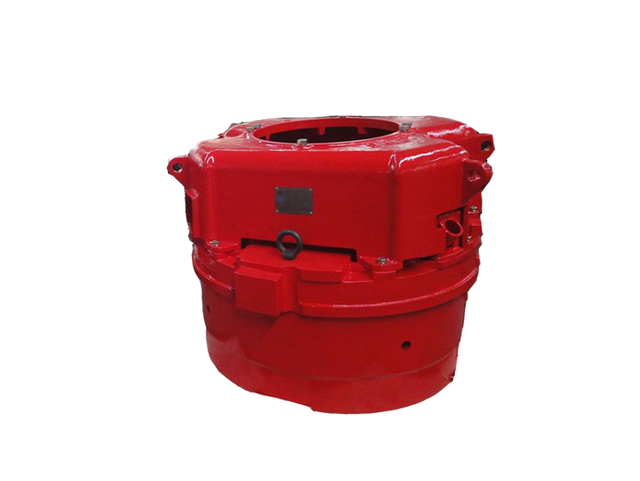

11.QW Pneumatic/Hydraulic Slips
QW pneumatic/hydraulic slips are an ideal wellhead mechanized power tool for tripping operations in oil and gas drilling. They are suitable for use with turntables of various types of drilling rigs. They can replace the traditional double elevator operation or hand - held drill pipe slip operation methods.
These slips feature easy installation, simple operation, pneumatic lifting, a high degree of automation, high safety performance, low labor intensity for workers, and an increased tripping speed. To a certain extent, they can improve the drilling efficiency.
